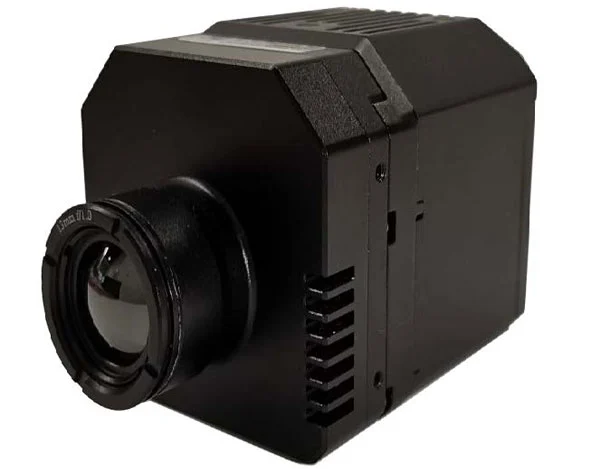

MS12 NETWORK THERMAL CAMERA CORES

Features:

  • Mini size, easy to integrate.
  • High resolution, high accuracy.
  • Anti-electromagnetic interference design for harsh electromagnetic environment.
  • Anti-vibration interface design for stable use.

Add to Wishlist
Add to Wishlist
Categories: ,
Trust Badge Image

Description

Description

Accuracy±2°C / ±2%

Thermal Camera Sensor Technology Uncooled FPA Detector
Resolution 640*512 / 384*288
Pixel Size 14 / 17 mm
Spectral Band 8~14 μm
Sensitivity ≤50 mk (@25°C, F#=1.0)
Temperature Measurement Measurement Range High gain mode:- -20°C~150°C
Low gain mode:- 0°C~550°C
Compression Standard Video Compression Standard H.264
Video Format MP4, MOV
Video Output Speed 1Mbps~4Mbps
Interface Analog Output CVBS
Network 10/100/1000 M RJ45
Serial Port RS232, RS485
Alarm 1 in 1 out
Protocol Ethernet/IP, TCP, UDP, SNTP, RTSP, HTTP, ICMP, SMTP, UPNP, DHCP, UPNP, PPPoE
Basic Parameter Lens Standard 640:19mm, 384:13mm
Dimension 44.5*40.5*72.6 mm
Weight 155.2 g
Operating Temperature -10°C~60°C
Operating Humidity 0~90%RH(non-condensing)
Power Supply 5~24 VDC
Power Consumption ≤ 3W
Second Development SDK SDK and guidance provided
