Description

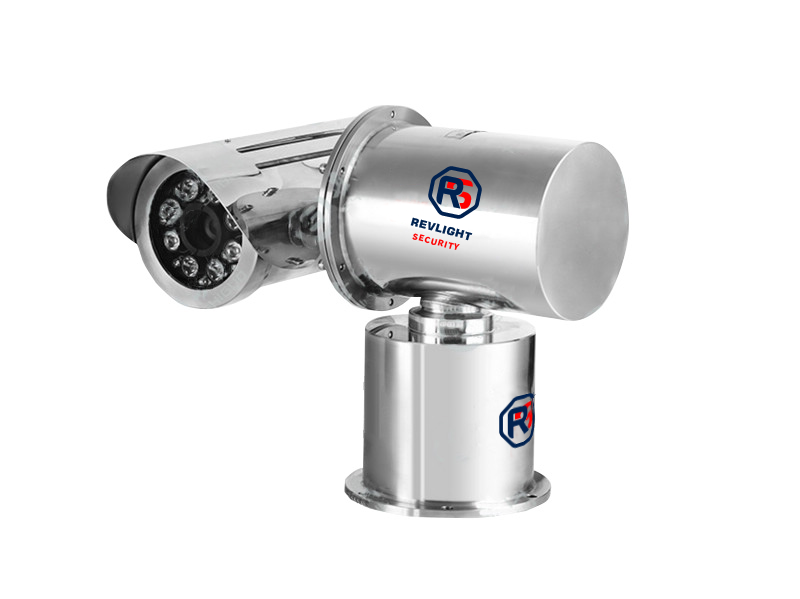

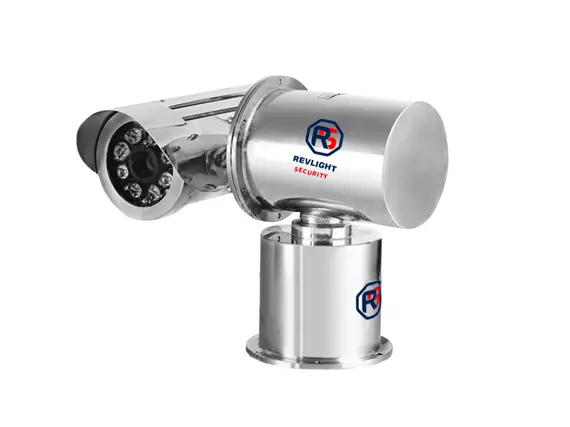

Enhance security in high-risk industrial environments with our Explosion-Proof Sturgeon Camera. Designed for areas prone to explosive mixtures of gases and dust, this surveillance solution combines cutting-edge technology with robust construction to provide unparalleled performance.

Features

  • Integrated Design: Highly integrated explosion-proof PTZ and decoder, offering a smaller volume and lighter profile with more intelligent and advanced functions.
  • Day/Night Clarity: Auto IR CUT day/night switch ensures clear and vivid HD images. Synchronously configured IR lamp enhances night vision capabilities.
  • Optimized Design: Side-loading design with a wider rotation angle and large capacity for flexible and comprehensive monitoring.
  • Durable Construction: Crafted from polycarbonate composite aerospace materials, the camera undergoes anti-fog treatment, ensuring good hardness and corrosion resistance.
  • Global Performance: Equipped with a worldwide quality fan for effective heat dissipation, preventing fogging and ensuring continuous operation.
  • Optical Grade Glass: Features optical-grade high-strength and transparent explosion-proof glass, eliminating infrared lamp halo with a luminous flux of up to 96%.
  • All-Weather Capability: NM invisible windshield wiper provides waterproof, oilproof, and dust-rejecting functionality.
  • Robust Build: Constructed with high-hardness special carbon steel or stainless steel using fluorocarbon high-temperature spray baking, making it explosion-proof, dustproof, waterproof, and rust-proof.
  • Advanced Imaging: Utilizes SONY-CV7520A zoom module with 2.13MP effective pixels, 30X optical zoom, and 12X electronic zoom for detailed and comprehensive surveillance.
  • Superior Night Vision: Super WDR function with up to 120DB, anti-shake DSP, defog, and starlight-level night vision function ensure optimal performance in various lighting conditions.
  • Smart Connectivity: Supports H.264 & H.265 video coding, dual-stream capability, and adjustable settings (0.1M~8Mpbs) for efficient and high-quality video transmission.
  • Reliable Connectivity: RJ45 interface with two levels of lightning protection and surge support. Transparent transmission using Sony VISAC protocol for camera control.
  • Versatile Compatibility: Free PC client software and SDK for second development available on Windows, Linux, Android, and ISO platforms.
  • Toughened Glass: Our optics-grade toughened ultra-clear white explosion-proof glass ensures exceptional clarity, boasting a luminous flux rate exceeding 96%. This feature effectively eliminates any infrared light halo, providing superior performance.
  • All-Weather Maintenance: the camera comes with a proper nano wiper, which is invisible. This camera viper ensures non-stick oil and water and dust-proof functionality.
  • Temperature Control: The semiconductor thyristor temperature control module is selectable, achieving automatic heating and cooling for optimal performance.



Application Environments

The Explosion-Proof Sturgeon Camera by Revlight Security is purposefully designed to thrive in environments with potentially explosive mixtures. This includes Class IIA, IIB, and IIC T1-T6 group flammable gases, as well as steam with air in Area No.1 and No.2. Additionally, it caters to explosive hazardous areas formed by the mixture of flammable dust and air in Area No.20, No.21, and No.22.

Markets

  • Oil Fields
  • Chemical Plants
  • Ports and Shipping
  • Oil Storage Facilities
  • Steamships
  • Oil Drilling Platforms
  • Gas Stations
  • Coal Mines
  • Aviation Settings
  • Military Installations
  • Medical Facilities
  • Steel Industry
  • Firecrackers Production
  • Machinery
  • Food Processing and Storage
  • Various Industrial Settings

Technical Specifications:

  • Material: Corrosion-proof 304 stainless steel
  • Video Coding: H.264/H.265, dual stream, AVI format
  • Zoom: SONY-CV7520A zoom module, 4.3MM~129MM, 30x Optical Zoom
  • Rotation: Horizontal 0°360°, Vertical -90°+90°
  • Explosion-Proof Level: PTZ IPC explosion-proof level: IP68
  • Night Vision: IR function for enhanced night vision

The Explosion-Proof Sturgeon Camera ensures reliable and advanced surveillance, providing peace of mind in critical applications. With its robust construction, cutting-edge features, and adaptability, it stands as a beacon of security in hazardous industrial environments.

Model TPT-Ex-S
Material Stainless Steel
Surface Treatment Original Stainless-Steel Color, Electropolishing Optional
Horizontal Rotation Range  360°
Vertical Rotation Range 90°
Horizontal Rotate Speed 1-240°/sec
Vertical Rotate Speed 1-100°/sec
Interface Specification G-1/2″
Weight ≤28kg
Installation Way Wall Mounting & Lifting
Input Voltage  AC220V
Camera Sony Original Camera
Working Current ≤2000mA
Electrical Connectivity Composite Cable (Network Port Connector Power Supply)
Rated Temperature (-30℃,+70℃)
Atmospheric Pressure 80-106KPa
Relative Humidity ≤95%RH(+25℃)
