MS12 NETWORK THERMAL CAMERA CORES

Next

AT300 HUMAN BODY THERMAL CAMERA ±0.3˚C

Next Product Image

THERMAL CAMERA WITH BUILT-IN MICROPHONE

Overview

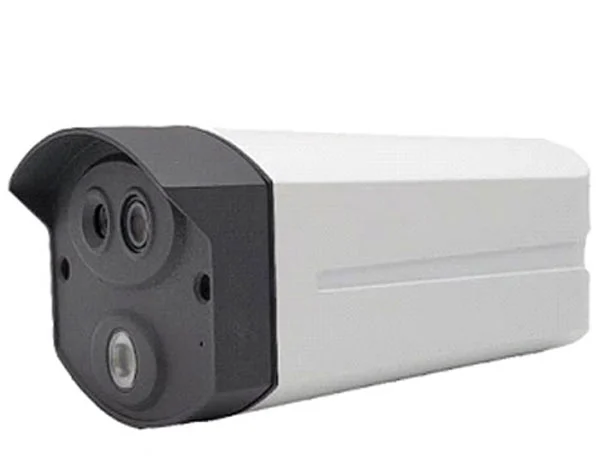

VN-01 Thermal & Optical Bi-spectrum Network Camera, which is capable of highly accurate body temperature measurement, to within ±0.3 ° C,The camera features a built-in AI algorithm for multi-person measurements up to 3m distances, enabling fast and non-contact access. Perfect for adjunct use in hospitals, sub-acute health settings, public areas (i.e. airports), and more. Also can be widely used in close-range scene monitoring, such as indoor fire prevention, warehouse file prevention, chaining pile temperature monitoring and other fields.


Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

Description

Model VN-01
Thermal
Image Sensor Vox Uncooled Focal Plane Arrays
Resolution 256 x 192
Pixel Interval 12pm
Aperture F1.0
Field ofView 35°x27°(HxV)
Optical
Image Sensor 1/2.8″2.0M Pixel CMOS
Resolution 1920 x 1080
Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), B/W 0.001 皿® (Fl.2, AGC ON)
Field ofView 84°x45°(HxV)
Focal Length 4mm
Shutter Speed 1 s to 1/100,000s
White Balance Auto/Manual/ATW(Auto-tracking WhiteBalance)/Indoor/ Outdoor/Daylight
Lamp/Sodium Lamp
Day & Night Mode IR cut filter with auto switch
WDR 80dB
Feature
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture Combines details of thermal and optical image PIP: overlay thermal image on optical image
Smart Function
Face snapping Built-in deep learning Al algorithm. Supports simultaneous detection of 20-30 faces
Temperature Measurement Support global and local temperature
Temperature Range From-15°C to+150°C
Temperature Accuracy Target temperature 35°C A 38°C±0.3 °CTarget temperature 20°C A 33°C ±0.6 °C

Target temperature 38°C A 50°C±0.6 °C

Network
Main Stream Thermal: 25Fps(1920 x 1080,1280 x 720)
Sub Stream Thermal: 25Fps(704x 576, 352×288)
Video Compression H.264 (Baseline/Main/High Profile)/NJPEG/H265
Audio Compression G 711u/G711a/G.7221/MP2L2/G.726.PCM
Protocols TCP/IP, ONVIF/GB.T 28181/DHCP, RTP, RTSP, PPPoE UPnP, UDP
API ONVIF (Profile S, Profile G, Profile T), SDK
General
Web Client Language languages English, Chinese
Power DC 12V, 0.65 A
Work Temperature Humidity From -20°C to 55°C: Humidity: 95% or Less
Protection Level IP66
Dimension 246 mm x 101 mm x 81 mm (with bracket)
Weight Approx. 1.5 kg
