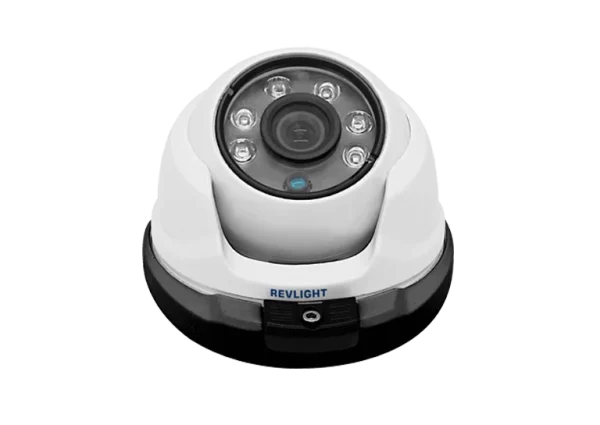

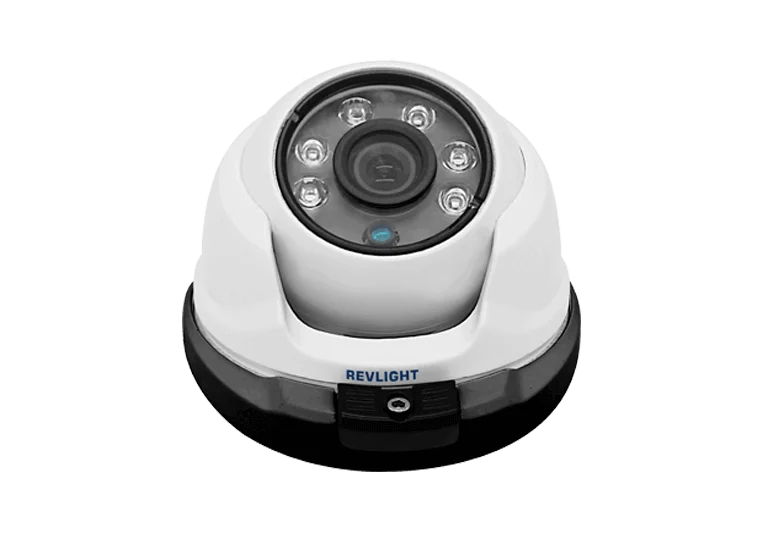

HD Analog Dome CCTV Camera

Original price was: $67.00.Current price is: $64.39.

Improve Security With An HD Analog Dome CCTV Camera System

An HD Analog Dome CCTV Camera System is a great choice in protecting your assets. If you want a lower-key camera for indoors or out, the dome is the camera you should get. Having the security camera housed inside a dome also make it harder for people to determine which way the camera inside is pointing, giving it seemingly more coverage than it actually has.

With ‘vandal proof’ housing and easy to install on either ceilings or walls, an analog dome security camera system is a great way to catch culprits on camera. High quality video (1080 resolution) and optional audio are only two of the many benefits of getting a HD Analog CCTV camera system here at Revlight Security. More customizable options include:

Add to Wishlist
Add to Wishlist

SKU: AHD20NAA252 Categories: ,
Trust Badge Image


  • IMX323 mega HD image sensor, with high definition 1080P, AHD 1080P/ CVBS 960H output, effective resolution is up to 1920*1080.
  • OSD menu supports 12 different languages; with DWDR/ defog function, strong light inhibition/ motion detection/ privacy protection, 2D/3D noise reduction function.
  • Adopt Nextchip 2441H DSP, with OSD function (mirror image, color/ white-black, PAL/NTSC).
  • AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu, built-in HOLD picture (freezing) function.
  • Support UTC, 4-in-1, switched by OSD, Output LCD/CRT can be chosen and device name can be displayed by OSD.
  • Power(600W)Video(2KV)dual-lightning protection design, OSP antioxidant PCB, size 32*38 dual-border.
  • smart HDR.

Contact Our Revlight Security Team!

Have more questions about what a dome camera can do for you? Trying to decide between a bullet camera and a Dome camera? Talk to our experts! Call our Revlight Security CCTV Team today for a free consultation at +65 6678-6557.


Revlight Security’s HD Analog Dome CCTV Camera System Delivers Great Video Right To Your Handheld.

Our HD Analog Dome CCTV Camera, when paired with a Digital Video Recorder (DVR), gives you, the user, optimal functionality. Whether you are looking to protect a museum or your own personal business, a DVR gives you the ability to remain on the move knowing what’s happening at home base. Download the user-friendly app and tap into your camera system from anywhere at anytime.

Model AHD20N-AA25
DSP/sensor NEXTCHIP2441H/      1/2.9IMX323
Signal System 1080P
Effective Picture
PAL/NTSC : 1920*1080
Horizontal Resolution 1920H
 Minimum Illumination  0.01LUX
S/N Ratio More than 41dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter 1/50(1/60)S-1/100,000S
Gama Characteristic 0.45
Day and Night Function Support IR-CUT
IR Distance 25Meters (with ¢ 8X6PCS Infrared LED)
Auto Gain Control Auto
Power/Current DC12V/2A
Lens 2.8mm Fixed Lens
Dimension (mm) 106X72(H)mm
