Analog Zoom Security Camera


HD Analog Dome CCTV Camera

Original price was: $67.00.Current price is: $64.39.
Next Product Image

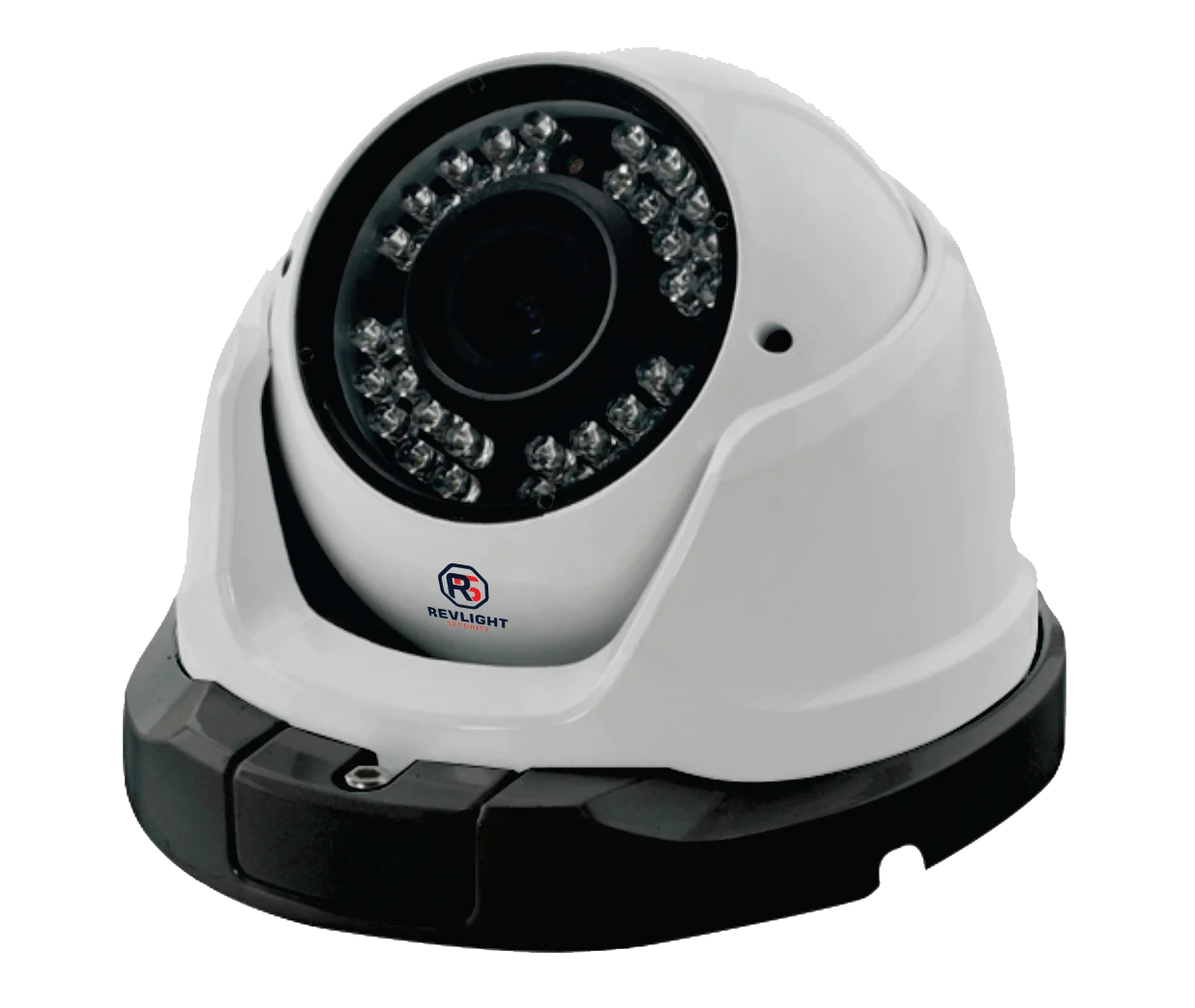

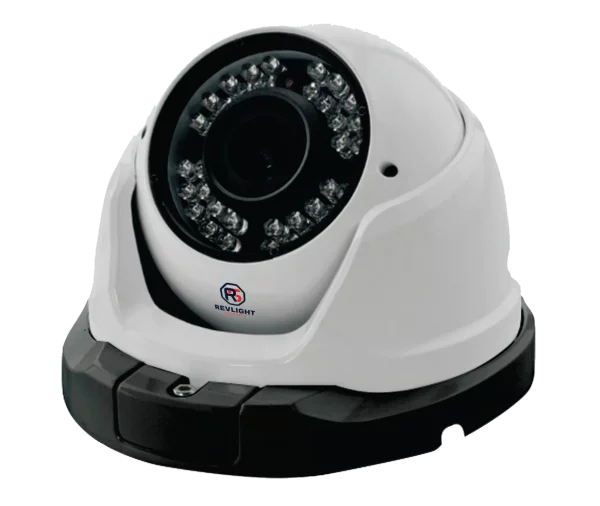

Analog Dome Zoom Security Camera

Camera with 2.8-12mm HD Motorised Zoom Lens

Other Features:

  • IMX323 mega HD image sensor, with high definition 1080P, AHD 1080P/ CVBS 960H output, effective resolution is up to 1920*1080.
  • OSD menu supports 12 different languages; with DWDR/ defog function, strong light inhibition/ motion detection/ privacy protection, 2D/3D noise reduction function.
  • Adopt Nextchip 2441H DSP, with OSD function (mirror image, color/ white-black, PAL/NTSC).

Add to Wishlist
Add to Wishlist
Trust Badge Image


  • AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu, built-in HOLD picture (freezing) function.
  • Support UTC, 4-in-1, switched by OSD, Output LCD/CRT can be chosen and device name can be displayed by OSD.
  • Power(600W)Video(2KV)dual-lightning protection design, OSP antioxidant PCB, size 32*38 dual-border.
  • Smart HDR.



Apply to roads, warehouses, underground parking and other place which required definition picture quality.

Model AHD20N-AAT30
DSP/sensor NEXTCHIP 2441H/1/2.9 IMX323
Signal System 1080P
Effective Picture Elements PAL/NTSC : 1920*1080
Horizontal Resolution 1920H
Minimum Illumination 0.01LUX
S/N Ratio More than 41dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter 1/50(1/60)S-1/100,000S
Gama Characteristic 0.45
Day and Night Function Support IR-CUT
IR Distance 30Meters (with ¢ 5X36PCS Infrared LED)
Auto Gain Control Auto
Power/Current DC12V/2A
Dimension (mm) 145X101(H)mm
