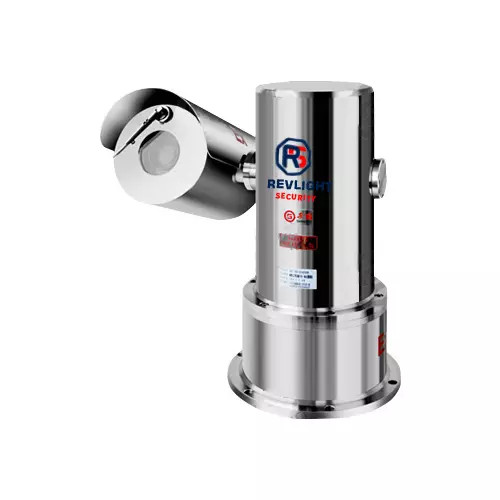

Explosion Proof Stinger Camera | Buy PTZ Security Camera







Key Features

Revlight Security’s Explosion-Proof Stinger Camera is a state-of-the-art surveillance solution meticulously engineered for the most challenging environments. Its advanced features ensure optimal performance and reliability in demanding scenarios:

  • The compact design seamlessly integrates an explosion-proof PTZ and decoder for enhanced functionality.
  • Corrosion-proof 304 stainless steel construction, double-plate waterproof tempered glass for impact resistance, shielding, and efficient heat dissipation.
  • SONY-CV7520A zoom module with 2.13MP effective pixels, 30X optical zoom, and 12X electronic zoom for precise monitoring.
  • Super Wide Dynamic Range (WDR) function up to 120DB, anti-shake DSP, defog, and starlight-level night vision for optimal visibility in challenging lighting conditions.
  • 360° horizontal rotation and -90° to +90° vertical movement for omnidirectional monitoring.
  • RJ45 two-level lightning protection and surge support for a stable network connection.
  • H.264 and H.265 video coding, dual-stream capability, and adjustable frame rates from 1 to 25 FPS for flexible video capture and transmission.
  • RJ45 interface for network transparent transmission channels, supporting Sony VISAC protocol for precise camera control.
  • Free PC client software and SDK for second development on Windows, Linux, Android, and ISO platforms, enabling customization and integration.
  • Optics-class toughened ultra-clear explosion-proof glass with over 96% flux. Eliminates infrared halos.
  • Invisible nano wiper for non-stick properties against water, oil, and dust. Optional semiconductor thyristor temperature control module for automatic heating and cooling functionality.
Add to Wishlist
Add to Wishlist
Trust Badge Image


Rely on the Best Explosion Proof Stinger Camera

Introducing the Explosion-Proof Stinger Camera by Revlight Security, a cutting-edge solution designed for demanding environments where safety is paramount. This camera is not just a surveillance device; it’s a comprehensive solution tailored for industries where precision, durability, and advanced functionality are imperative.

Application Environments:

Applicable for industries with explosive mixtures, including:

  • Class IIA, IIB, and IIC T1-T6 group flammable gas environments.
  • Steam with air in areas No.1 and No.2.
  • Explosive hazardous areas due to flammable dust and air mixtures in areas No.20, No.21, and No.22.


Ideal for deployment in various industries, such as:

  • Oil fields
  • Chemical plants
  • Ports
  • Oil storage facilities
  • Steamships
  • Oil drilling platforms
  • Gas stations
  • Coal mines
  • Aviation
  • Military applications
  • Medical facilities
  • Steel industry
  • Firecracker production
  • Machinery and equipment
  • Food processing and storage

Revlight Security’s Explosion-Proof Stinger Camera is designed to excel in these diverse and demanding environments, providing unparalleled surveillance capabilities.

Technical Specifications:

  • Constructed with corrosion-proof 304 stainless steel for durability.
  • Employs H.264/H.265 video coding, dual-stream support in AVI format.
  • Features an original SONY-CV7520A zoom module with 30X optical zoom (4.3MM to 129MM).
  • Offers 360° horizontal and -90° to +90° vertical movement with an IP68 explosion-proof PTZ IPC rating.
  • True Wide Dynamic Range, Low-Light Technology, and Electronic Image Stabilization for optimal image quality.
  • Smart Analytics, powered by Revlight Security, enhances detection, tracking, and classification.

Elevate your security standards with Revlight Security’s Explosion-Proof Stinger Camera – a pinnacle in surveillance technology. Unleash the power of advanced engineering to safeguard your surroundings with precision. Order now and redefine surveillance excellence in the most challenging environments.

Model TPT-Ex-S1DB02
Material 304 Stainless Steel
Surface Treatment Original Stainless Steel Color, Electropolishing Optional
Ingress Protection IP68
Rotation Angle Horizontal 0°~360°, Vertical-90°~+90°
Rotation Speed Horizontal 1-240°/sec, Vertical: 1-100°/sec
Communication Method RJ45
RJ45 Protocols Pelco-P, Pelco-D, self-adaptive
Communication Baud Rate 2,400/4,800/9,600/19,200 bps
Interface Spec G-1/2″
Weight ≤28kg
Automatic Scanning 1 (Menu control can set 5)
Max Carrying Capacity 10kg
Method of Installation Wall Mounting & Upright Platform Installation
Camera Type Sony Original Camera, 1/2.8-type Exmor R CMOS
Image resolution 1080p/59.94,1080p/50, 1080p/60, 1080p/30, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 1080i/60, 1080i/30, 720p/59.94,720p/50, 720p/60, 720p/30, 720p/29.97, 720p/25, NTSC*1, PAL*1
Minimum Illumination Color: 0.01 Lux (F1.6,AGC on, 1/30s)
